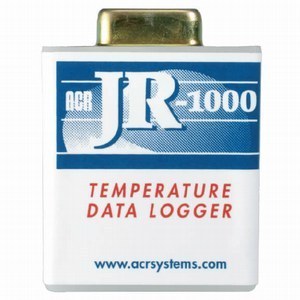

ACR JR-1000 Series Low Cost Temperature Data Logger

JR-1000,Series,Low,Cost,Temperature,Data,Logger,ACR,SystemsThe ACR JR-1000 is a low-cost, user configurable temperature logger that plugs easily into any computer for data download. Featuring a 5-year battery life, it has the capacity to record up to 244,800 readings (when data compression is selected).













Specifications

Logger Resolution
 0.4°C @ 25°C (0.7°F @ 77°F)
Memory Size
 32 KB (up to 244,800 readings when data compression selected)
Temperature Sensor Type
 NTC Thermistor 10,000 ohms @ 25°C (77°F)
Temperature Sensor Range:
 -40 to 85°C (-40 to 185°F)
Temperature Sensor Accuracy
 +/- 0.2°C @ 25°C (+/- 0.3°F @ 77°F)

Ordering Information

Model Description Catalog #
JR-1000-SP Single channel temperature data logger USB Starter Pack
Includes: Data Logger, TrendReader Express Software, serial to USB Adapter cable and Quick Start Guide		 01-0192
JR-1000 Single channel temperature data logger - Logger only, software and cable not included 01-0196

More information


JR-1000
JR-1000
Low-Cost Temperature
Data Logger.
JR-1001
JR-1001
Low-Cost, Intrinsically Safe Temperature Data Logger.
TrendReader Express Manual
Includes Manuals for
JR-1000, JR-1001, Nautilus and TRH-1000 Data Loggers
